Physical and chemical properties

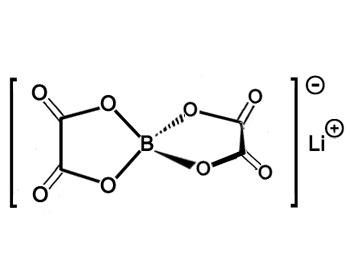

- Chemical Name: Lithium Bis(Oxalate)borate
- Alias: Lithium bis(oxalate)borate
Libob: trilithium 2,2′-[(oxidoboranediyl)didioxy]bis(oxoacetate)
LiBOB: Lithium Bis(Oxalato) Borate - Molecular Formula: C4BLi3O11
- Molecular Weight: 193.79
- CAS No.: 244761-29-3
- Melting Point: 293-300℃
- Flash Point: 6℃
- EINECS No.: 238-178-9
- UN No.: 3260 8/PG 2
- Safety Class: 22-26-27-36/37/39-45
- Appearance: White or yellowish powder
- Solubility: It is easy to produce more insoluble substances when it is exposed to water.At room temperature, in solvent of Propylene carbonate can be dissolved 17%, about 0.8mol/L;
Application
Lithium bis(oxalate)borate can be used as a electrolyte salt or additive for lithium ion batteries. It is a heat-stable chelated boron salt.Unlike conventional fluorine-containing conductive salts (such as lithium hexafluorophosphate or lithium tetrafluoroborate), lithium bis(oxalate)borate is a multi-functional electrolyte component that does not produce gases and toxic substances during application process.
LiPF6 is currently the most commonly used in lithium ion battery electrolyte. Its performance has a close relationship with the battery charging, discharging performance and its capacity.
Specification
| LiBOB | DMC | H2O | Fe | CL– | SO42- | |
| ≥% | ≤Mg/Kg（%） | |||||
| Standard | 99.9 | 200 | 100 | 5 | 5 | 5 |

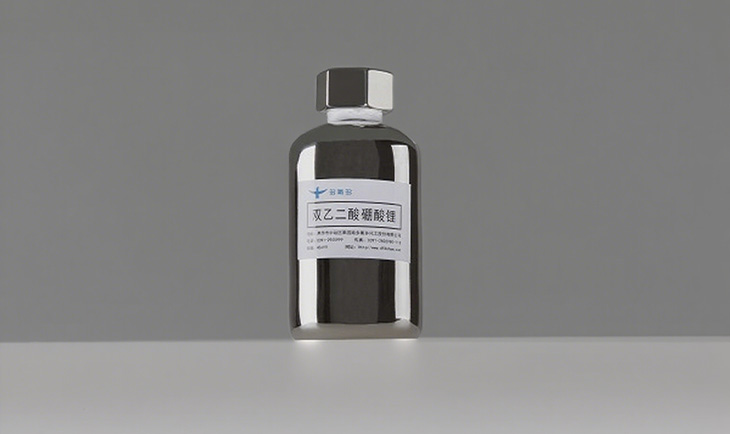

Package: 5kg Fluorinated plastic drum.
Storage: This product is easy to absorb water. It is recommended to separate and dispose in vacuum glove box or drying room.Store in a dry and ventilated environment at room temperature or low temperature. Keep away from heat source.The sealed storage period is 5 years.
